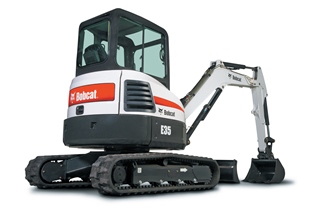

Bobcat E35

Available For Rent
Available For Purchase


The E35 is a zero tail swing (ZTS) model in the Bobcat® M-Series compact excavators. With ZTS, you gain unrestricted rotation and greater flexibility when you work close to objects or walls. ZTS reduces damage to the machine and surrounding property, giving you lower operating costs. M-Series models provide improved digging performance, more usable power, consistent and smooth operation, and predictable results every time. Stay comfortable in a quieter cab that reduces sound levels by more than 50%. Bobcat engineers and manufactures its own attachments to help you accomplish even more.



 Specifications
Engine
Emissions tier (EPA) Tier 4
Engine Fuel Diesel
Maximum Governed RPM 2,400 rpm
Horsepower 33.5 hp
Turbocharged Engine Yes
Performance
Operating Weight 7,468 lbs
Weight Class
3.4 t
Travel Speed - High 2.9 mph
Travel Speed - Low 1.6 mph
Arm Digging Force 4,589 lbf
Bucket Digging Force 6,968 lbf
Rated Lift Capacity 2,866 lbs
Lift Radius 118 in
Boom Swing - Left 75°
Boom Swing - Right 55°
Maximum Dig Depth 10.2 ft
Max Dump Height 11 ft
Maximum Reach at Ground Level 17.2 ft
Capacities
Fuel Tank 14 US gal
Hydraulic System
Auxiliary Std Flow 16.9 GPM
Auxiliary Pressure 2,987 psi
Dimension
Length 189.7 in
Overall Length in Travel Position 189.7 in
Width 69 in
Height 95.6 in
Height with Operator Cab 95.6 in
