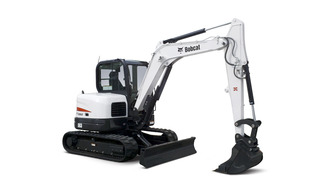

Bobcat E63

Available For Rent
Available For Purchase


With best-in-class over-the-side lifting performance, the Bobcat® E63 compact excavator (also known as a mini excavator) can attack your most difficult jobs. Improved slew performance makes it an ideal machine for working on slopes.

The conventional tail swing E63 provides easy operation with multi-function joysticks, fingertip controls and deluxe color instrumentation. Plus, you'll stay comfortable in the fully adjustable super deluxe seat with heat and air conditioning.





 Specifications
Engine
Emissions tier (EPA) Tier 4
Engine Fuel Diesel
Maximum Governed RPM 2,100 rpm
Horsepower 59.4 hp
Turbocharged Engine No
Performance
Operating Weight 13,779 lbs
Weight Class 6.3 t
Travel Speed - High 2.9 mph
Travel Speed - Low 1.6 mph
Arm Digging Force 5,767 lbf
Bucket Digging Force 9,731 lbf
Rated Lift Capacity 5,902 lbs
Lift Radius 118.1 in
Boom Swing - Left 70°
Boom Swing - Right 50°
Maximum Dig Depth 13.5 ft
Max Dump Height 14 ft
Maximum Reach at Ground Level 20.4 ft
Capacities
Fuel Tank 20.6 US gal
Hydraulic System
Auxiliary Std Flow 22.5 GPM
Auxiliary Pressure 3,046 psi
Dimension
Length 225.6 in
Overall Length in Travel Position 147.6 in
Width 78 in
Height 100.4 in
Height with Operator Cab 100.4 in
