Details

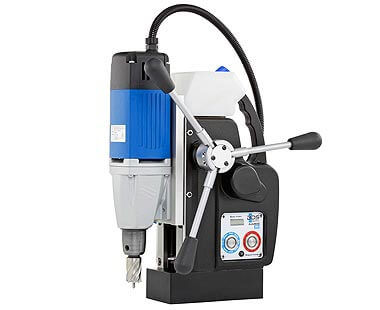

CS Unitec AutoMAB 350

Available For Rent

Available For Purchase

IDEAL HOLE CUTTING MACHINE FOR STEEL FABRICATORS, CONTRACTORS AND PLANT MAINTENANCE PROFESSIONALS

Powerful and reliable
Automatic feed with auto stop and retraction
Power feed automatically controls drill pressure to maintain optimal RPM and feed rate
3/4" direct arbor
Integrated cutting oil reservoir
Automatic internal lubrication

Request a Quote

Product files and documents


AutoMAB 350 Specifications Sheet PDF file, 1.3 MB
AutoMAB 350 Operating Manual PDF file, 1.63 MB

Specifications
Motor Power	10.5 Amp / 110 Volt
Weight	33 lbs.
Stroke	6"
Hole Capacity	1-1/2" dia.
Drilling Depth	2-3/8" with pilot pin 4-3/8" without pilot pin
Speed	460 RPM
Magnet Base Size	6-5/8" L x 3-1/3" W
Dimensions	12-1/4" H x 8-3/4" L x 7-3/4" W
Magnetic Force (1" plate)	3,750 lbs.
Arbor Bore	3/4" Weldon Shank
Automatic Lubrication	Included
