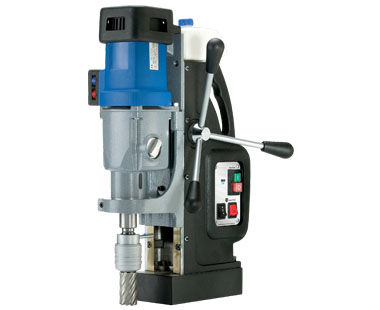

CS Unitec MAB 845

Available For Rent

Available For Purchase

IDEAL FOR STEEL ENGINEERING, PLANT CONSTRUCTION AND MORE

Powerful and reliable
Designed for continuous use
Quick-change keyless cutter system
Integrated cutting oil reservoir
Automatic internal lubrication

Request a Quote

Product files and documents


MAB 845 Specifications Sheet PDF file, 1.6 MB
MAB 845 Operating Manual PDF file, 3.9 MB

Specifications
Motor Power	16 Amp / 110 Volt
Weight	68 lbs.
Stroke	10"
Hole Capacity	4-1/16" dia.
Twist Drill Capacity	1-1/4" dia.
Tapping Capacity	1-1/8" dia.
Speeds	40-110, 65-175, 140-360, 220-600 RPM
Magnet Base Size	8-5/8" L x 4-1/3" W
Dimensions	18-5/8" H x 14-7/16" L x 9-7/16" W
Magnetic Force (1" plate)	6600 lbs.
Arbor Bore	3/4" and 1-1/4" Weldon Shank, standard
Spindle	MT3
Automatic Lubrication	Included
Swivel Base	Included
