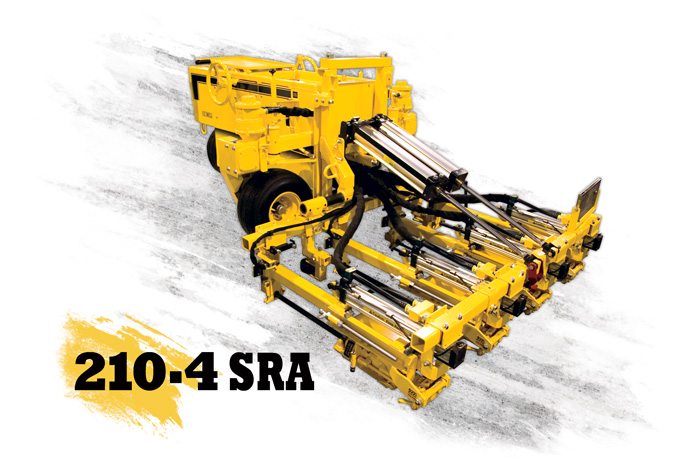

E-Z Drill 210-4 SRA Slab Rider

Available For Rent
Available For Purchase


Complete airport projects, full-depth repair jobs and lane additions faster with the 4-gang 210-4 SRA slab rider. You can drill up to four holes 18 inches deep every 12 to 36 inches on center. The machine fits in a 4-foot patch and drills with exceptional accuracy without disturbing the subgrade. It requires 400 cfm and can be configured to tow the air compressor, which eliminates the need for extra vehicles and saves space on the jobsite.

Product files and documents


210-4 SRA Specs PDF file, 1.45 MB
210-3, -4, -5 SRA Manual PDF file, 314.84 KB


Horizontal Position

Lower Length (A) 47 in (119.4 cm)
Overall Length (A) + (C) 117 in (297.2 cm)
Cart Length (C) 70 in (177.8 cm)
Wheel Base (D) 58 in (147.3 cm)
Width 60 in (152.4 cm)
Height 44 in (111.8 cm)
Weight 2202 lbs (998.8 kg)
Drill Distance From Corner 6 in (15.2 cm)
Drill Distance From Ground 3 in (7.6 cm)
Drill Depth (std.) 18 in (45.7 cm)
Drill Bit Diameter 5/8 in to 2 1/2 in (15.9 mm to 63.5 mm)
Distance From Wheel to Center of Bit N/A
Drill Motor (pneumatic) CP 32A
Drill Motor Weight 54 lbs (24.5 kg)
Chuck Size (std.) 7/8 in x 3 1/4 in (22.2 mm x 82.6 mm)
Air Consumption (minimum) 400 cfm (11.2 m3/min)
Operating Pressure 90 psi (6.2 bar)
Impact (ft. lbs./blow) 36 fpb (49 J)
Hammer Speed 2200 bpm
Speed 288 rpm



Vertical Position

Lower Length (A) 67 1/2 in (171.5 cm)
Overall Length (A) + (C) 91 in (231.1 cm)
Cart Length (C) 70 in (177.8 cm)
Wheel Base (D) 58 in (147.3 cm)
Width 60 in (152.4 cm)
Height Varies
Weight 2202 lbs (998.8 kg)
Drill Distance From Corner N/A
Drill Distance From Ground up to 12 in (30.5 cm)
Drill Depth (std.) 18 in (45.7 cm)
Drill Bit Diameter 5/8 in to 2 1/2 in (15.9 mm to 63.5 mm)
Distance From Wheel To Center of Bit 23 1/2 in (59.7 cm)
Drill Motor (pneumatic) CP 32A
Drill Motor Weight 54 lbs (24.5 kg)
Chuck Size (std.) 7/8 in x 3 1/4 in (22.2 mm x 82.6 mm)
Air Consumption (minimum) 400 cfm (11.2 m3/min)
Operating Pressure 90 psi (6.2 bar)
Impact (ft. lbs./blow) 36 fpb (19.0 J)
Hammer Speed 2200 bpm
Speed 288 rpm
