Details

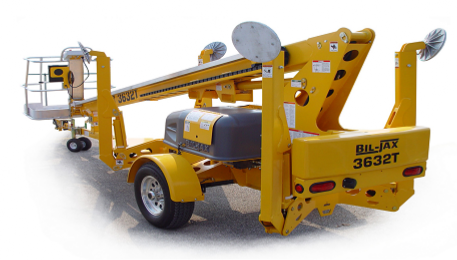

Haulotte 3632 T

Available For Rent
Available For Purchase


  • Access on the move
  • Hydraulic outriggers and automatic leveling allow operation in under 30 seconds
  • Superior combination of industry leading capacity and outreach
  • Can be towed by a standard half-ton pickup truck - No commercial driver’s license needed
  • Exceptional productivity
  • Air / water lines and 110V GFI protected power to the platform

Product files and documents


3632T PDF file, 2.35 MB


 Specifications
Working height 43 ft 6 in
Platform height 37 ft 6 in
Horizontal outreach (from centerline) 32 ft
Horizontal outreach (from edge of footpad) 27 ft
Up and over height N/A
Lift capacity 500 lbs
Length - stowed 21 ft 11 in
Width stowed 5 ft 6 in
Height stowed 6 ft 5 in
Platform size 4 ft x 2 ft 6 in
Outrigger footprint 12 ft 4 in x 11 ft 4 in
Turntable rotation 355° non-continuous
Jib - length N/A
Jib - Vertical Motion N/A
Tow speed rating 65 mph
Gradeability 12.5
Leveling capability 12.5 °
Tire size ST 225/75 R15
Power source 4 x 6 V 245 amp-hr
Tongue weight (no options) 200 lbs
Weight (no options) 4440 lbs
