Details

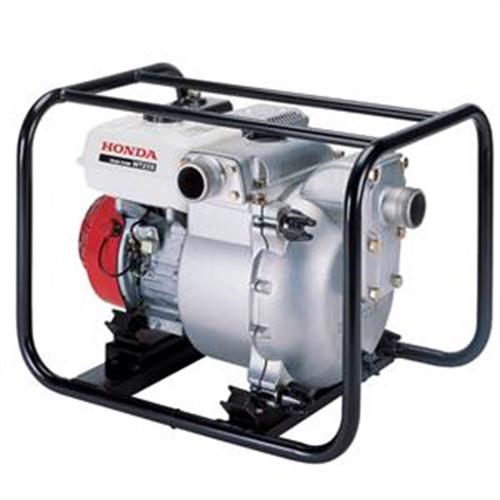

Honda WT20XK3A

Available For Rent
Available For Purchase


FEATURES

  • Heavy-duty 2" construction trash pump
  • Easy starting Honda OHV commercial engine
  • 185 gal./min capacity
  • Solid handling capability up to 13/16"
  • Cast iron volute and impeller
  • Quick clean out port
Request a Quote

Product files and documents


WT20XK3A PDF file, 3.92 MB


 Specifications
Engine GX160
Displacement 163 cc
Bore and stroke 2.7 x 1.8 in
Compression Ratio 9.0:1
Oil Alert Standard
Pump type Trash Centrifugal Self-priming
Volute Rigid Mounted Cast Iron with Stainless Wear Plate
Impeller Conical Cast Iron
Mechanical Seal (Pump case / impeller) Silicon Carbide/Silicon Carbide
Priming time 60 sec @ 16.4 ft
Drive system Direct
Discharge capacity 185 gal/min
Suction port diameter 2"
Discharge port diameter 2"
Total head lift 85 ft
Suction head lift 26 ft
Maximum pressure 37 psi
Solids handling 16/16 in
Dimensions (L x W x H) 24.4 x 18.1 x 18.3 in
Dry weight 104 lbs
Fuel Capacity 0.82 US gal
Run Time @ Max Discharge 1.5 hr
Strainer Part # 78325-YG0-003
Residential Warranty 3 Years
Commercial Warranty 3 Years
